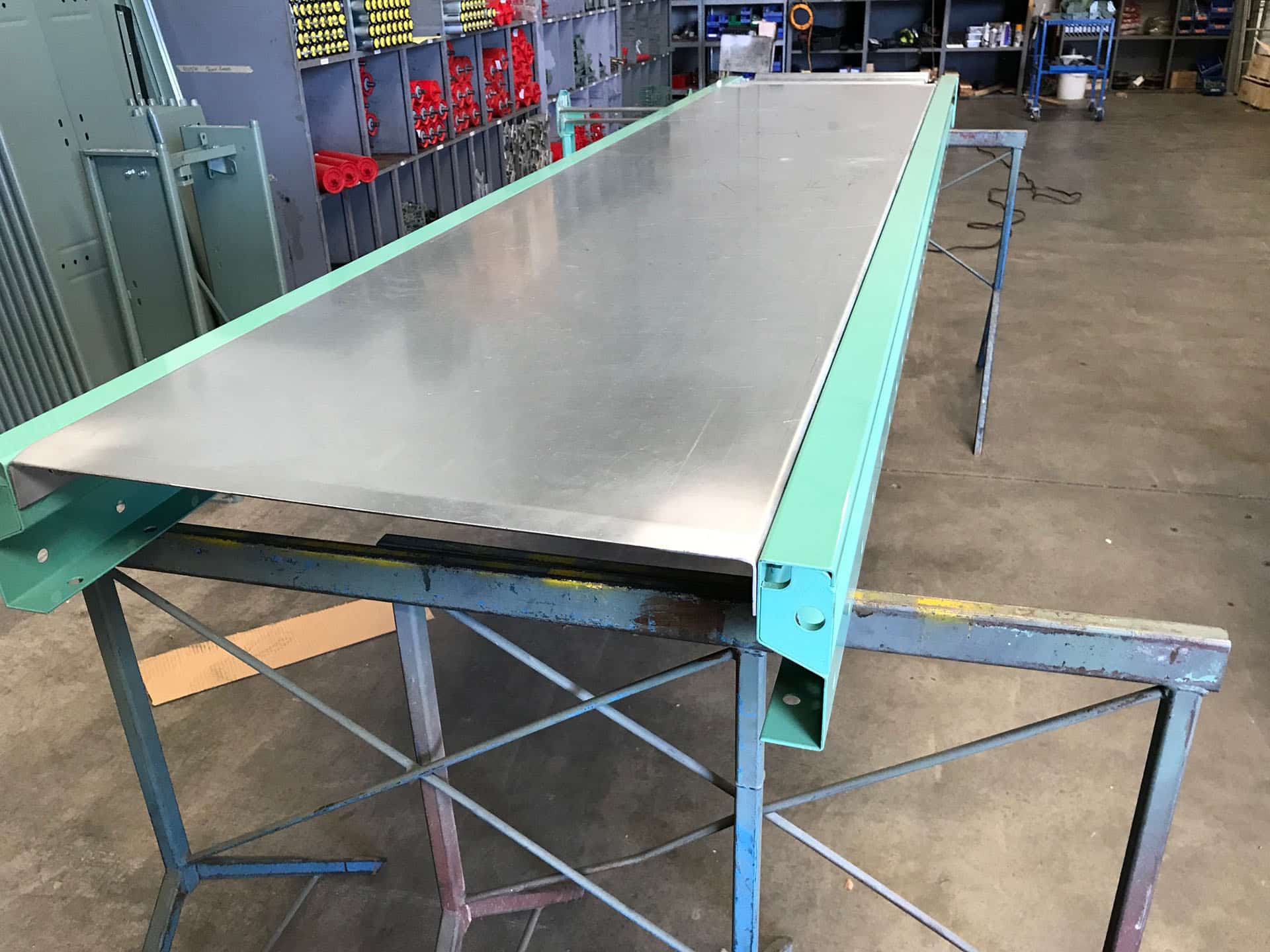

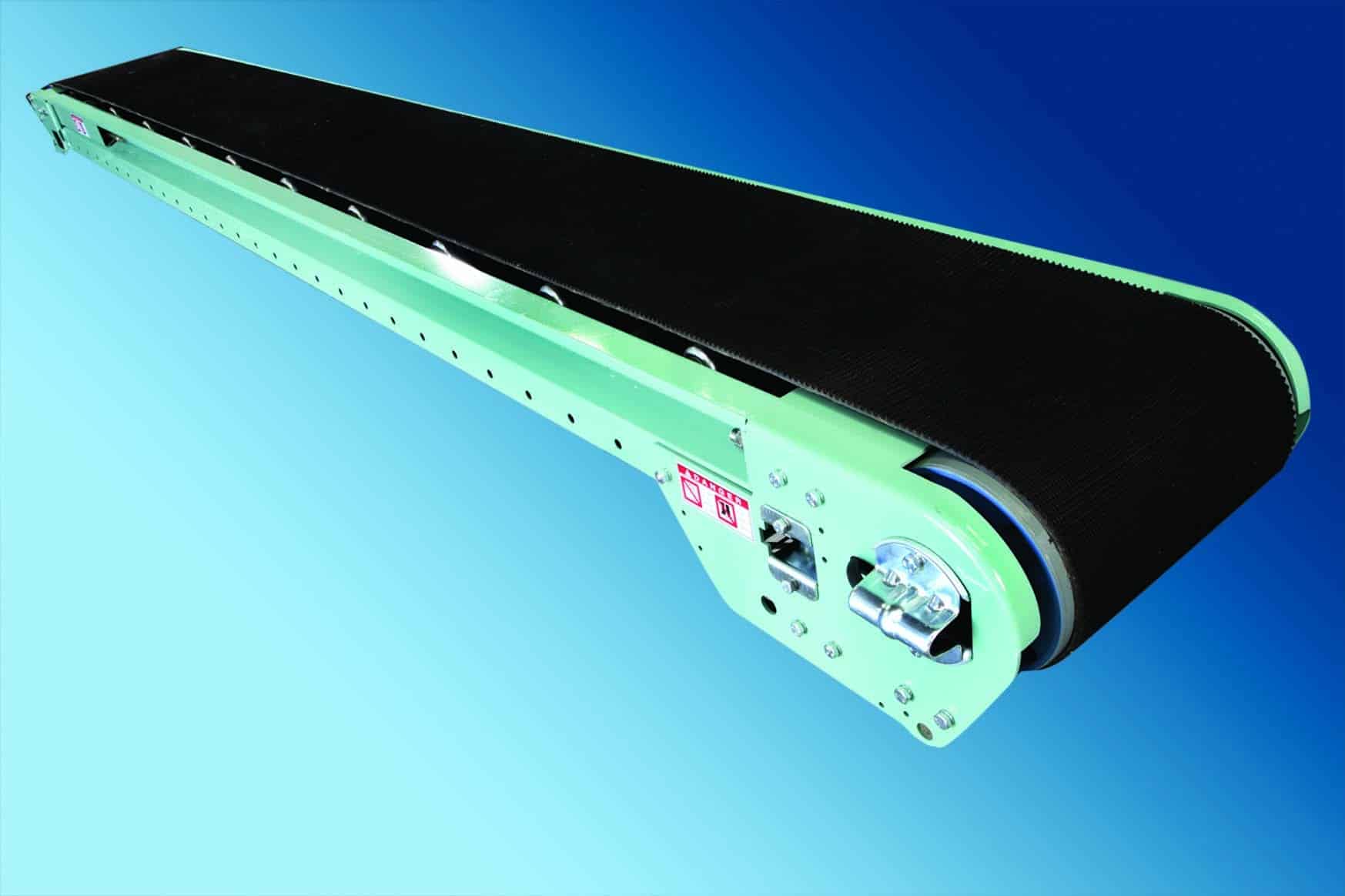

The Sanki BF Flat Conveyor offers an off the shelf, instant conveyor that can be delivered in 24 hours. The Sanki BF Flat Conveyors are usually used to convey boxes, cartons, bags, components etc.
It is available in three belt widths. These are 350mm, 450mm, and 600mm wide belts. The lengths range from 4m to 50m.

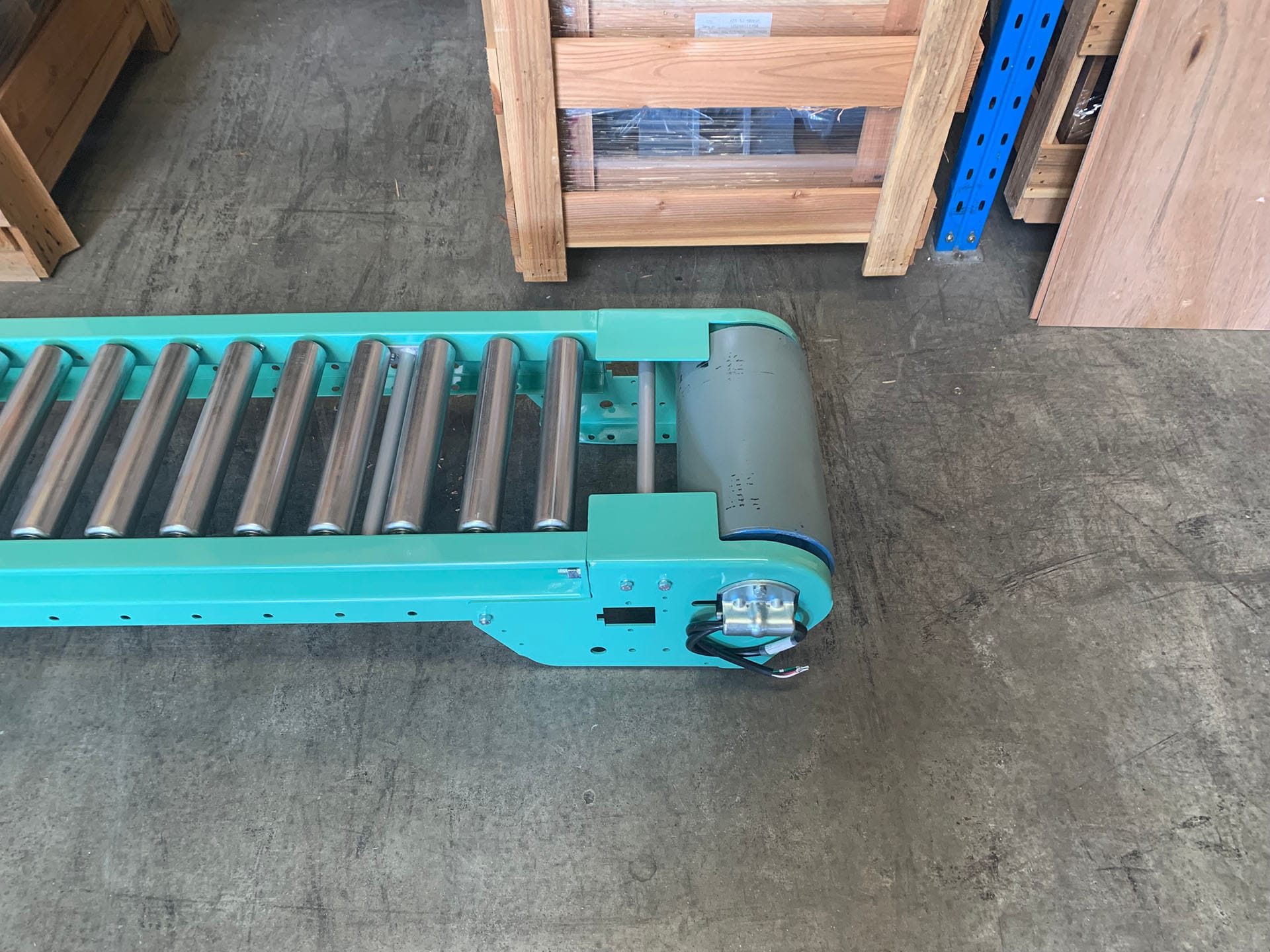

The BF Conveyors are equipped with the normal Sanki Motorised Head Drum that is contained within the Head Pulley. The normal Belt Speed is 34mpm.
They have a Maximum Capacity of 50kg per metre, and they can be used on the horizontal or at a sensible incline.
All Spare Parts and Rolling Gear are available Ex Stock and can be despatched the same day.
| MODEL | BELT WIDTH (MM) | CONVEYOR LENGTH (m) | MAX CAPACITY (t/h) | CONVEYOR SPEED (m/min) | MOTOR PULLEY (kW) | BELT LENGTH (endless m) | MACHINE WEIGHT (kg) | |
|---|---|---|---|---|---|---|---|---|
| OVERALL LENGTH | APPROX C/C | |||||||
| BF35-4 | 350 | 3.7 | 3.5 | 100 (50kg/m) | 35/42 or 21/25 (50/60Hz) | 1.0 or 1.5 | 7.5 | 140 |
| BF35-5 | 4.7 | 4.5 | 9.5 | 163 | ||||
| BF35-6 | 5.7 | 5.5 | 11.5 | 182 | ||||
| BF35-7 | 6.7 | 6.5 | 13.5 | 203 | ||||
| BF35-8 | 7.7 | 7.5 | 15.5 | 227 | ||||
| BF35-9 | 8.7 | 8.5 | 17.5 | 245 | ||||
| BF35-10 | 9.7 | 9.5 | 19.5 | 267 | ||||
| BF35-11 | 10.7 | 10.5 | 21.5 | 291 | ||||
| BF35-12 | 11.7 | 11.5 | 23.5 | 309 | ||||
| BF35-13 | 12.7 | 12.5 | 25.5 | 331 | ||||
| BF45-4 | 450 | 3.7 | 3.5 | 100 (50kg/m) | 35/42 or 21/25 (50/60Hz) | 1.0 or 1.5 | 7.5 | 157 |
| BF45-5 | 4.7 | 4.5 | 9.5 | 184 | ||||
| BF45-6 | 5.7 | 5.5 | 11.5 | 204 | ||||
| BF45-7 | 6.7 | 6.5 | 13.5 | 228 | ||||
| BF45-8 | 7.7 | 7.5 | 15.5 | 256 | ||||
| BF45-9 | 8.7 | 8.5 | 17.5 | 277 | ||||
| BF45-10 | 9.7 | 9.5 | 19.5 | 300 | ||||
| BF45-11 | 10.7 | 10.5 | 21.5 | 327 | ||||
| BF45-12 | 11.7 | 11.5 | 23.5 | 348 | ||||
| BF45-13 | 12.7 | 12.5 | 25.5 | 372 | ||||
| BF60-4 | 600 | 3.7 | 3.5 | 110 (70kg/m) | 35/42 or 21/25 (50/60Hz) | 1.5 | 7.5 | 189 |
| BF60-5 | 4.7 | 4.5 | 9.5 | 221 | ||||
| BF60-6 | 5.7 | 5.5 | 11.5 | 245 | ||||
| BF60-7 | 6.7 | 6.5 | 13.5 | 272 | ||||
| BF60-8 | 7.7 | 7.5 | 15.5 | 304 | ||||
| BF60-9 | 8.7 | 8.5 | 17.5 | 329 | ||||
| BF60-10 | 9.7 | 9.5 | 19.5 | 356 | ||||
| BF60-11 | 10.7 | 10.5 | 21.5 | 388 | ||||
| BF60-12 | 11.7 | 11.5 | 23.5 | 412 | ||||
| BF60-13 | 12.7 | 12.5 | 25.5 | 489 | ||||
